Smartcut EVS CNC Vertical Mills
Description
Designed for growing companies evolving from manual mill operations to computer numerical control (CNC), Summit® SmartCut EVS Series CNC Vertical Mills are a perfect fit. This CNC milling machine features the Fagor 8058 Control System – perhaps the most versatile CNC due to its dual operating system. In one mode, it is a very powerful ISO G-code control system and in the other mode Icon conversational programming with highly interactive graphics, which makes even complex tasks easy to program – regardless of the operator’s experience level. The rugged Summit V-series vertical mills serve small one-man machine shops to job shops, R&D departments, tool rooms and maintenance shops, as well as large, sophisticated manufacturing operations.
Standard Features
- Movement of head to various angles easily obtained from operator’s position
- Inverter duty, high-energy – high-efficiency motors for lower utility costs, save up to 35%
- Fewer moving parts in head for less maintenance and down time
- Centrally located controls for ease of operation
- Immediate response speed control (0-full speed in 4 sec.)
- Full range spindle RPM selection CNC controlled
- “Turcite-B” inserted guideways for extended machine life
- Complete electrics with low voltage controls for safer machine operation
- Fan cooled electrical enclosure
- Heavy “Meehanite” cast iron construction for excellent damping
- Huge box ways on knee
- Built-in coolant tank
- Automatic way lubrication
- Fagor CNC 8058 Control System
Included Accessories
- Coolant system
- Halogen work light
- Clamping kit
- Service wrenches

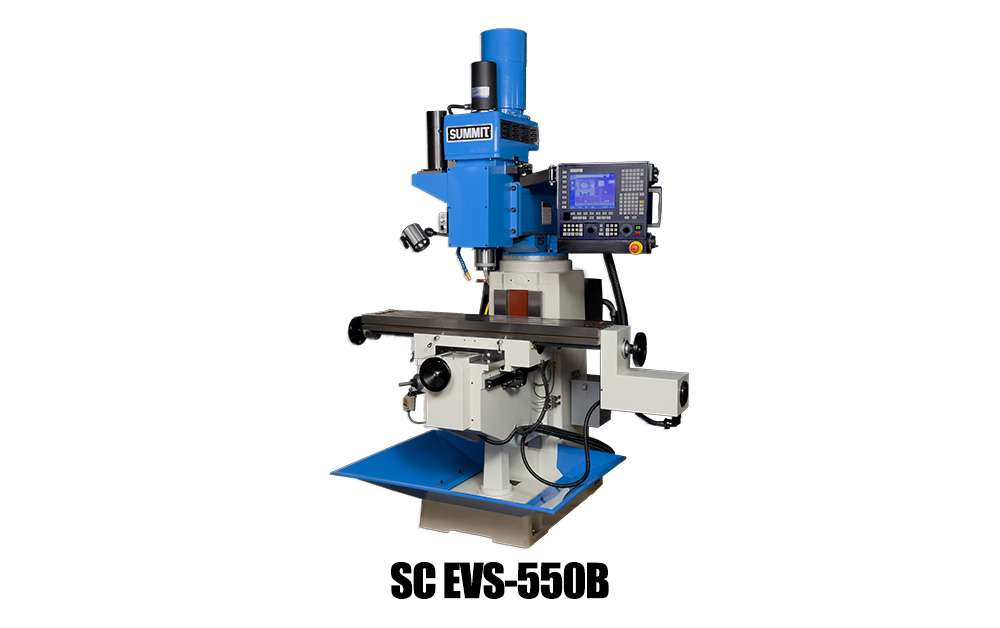

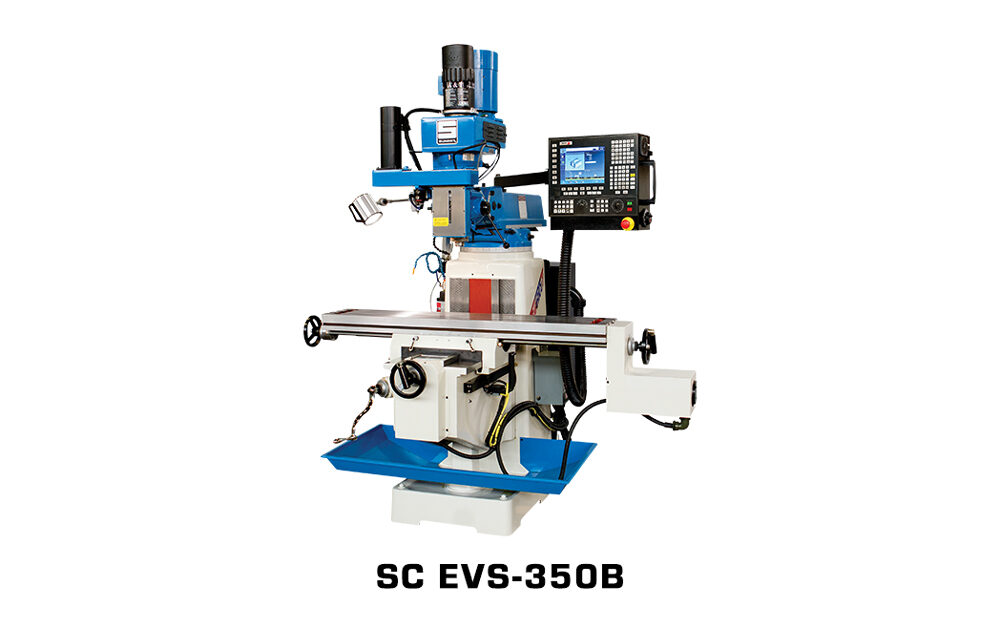

Specifications: | SC EVS-350B | SC EVS-550B |
Motor size (2 speeds) | 3 HP | 5 HP |
Spindle speeds – number | Inf. Variable | |
Spindle speeds – range RPM | 60 – 4200 | 0 – 3650 |
Spindle taper | R-8 | #40 |
Spindle travel | 5.5″ | 5.5″ |
Head movement side to side | +/-90º | |
Head movement front to back | +/-45º | |
Table size (WxLxH) | 10″ x 54″ | 11″ x 52″ |
Table feed (longitudinal) | 34″ | 32″ |
Table feed (cross) | 14″ | 14″ |
Maximum work piece weight | 850 lbs. | 1025 lbs. |
Rotation of over arm | 360º | |
Over arm adjustment | 22″ | 24″ |
Spindle nose to table | 2.5″ – 17.5″ | 3″ – 20″ |
Weight | 2900 lbs. | 3740 lbs. |
Specifications: | SC EVS-350B | |
Motor size (2 speeds) | 3 HP | |
Spindle speeds – number | Inf. Variable | |
Spindle speeds – range RPM | 60 – 4200 | |
Spindle taper | R-8 | |
Spindle travel | 5.5″ | |
Head movement side to side | +/-90º | |
Head movement front to back | +/-45º | |
Table size (WxLxH) | 10″ x 54″ | |
Table feed (longitudinal) | 34″ | |
Table feed (cross) | 14″ | |
Maximum work piece weight | 850 lbs. | |
Rotation of over arm | 360º | |
Over arm adjustment | 22″ | |
Spindle nose to table | 2.5″ – 17.5″ | |
Weight | 2900 lbs. |
Specifications: | SC EVS-550B |
Motor size (2 speeds) | 5 HP |
Spindle speeds – number | Inf. Variable |
Spindle speeds – range RPM | 0 – 3650 |
Spindle taper | #40 |
Spindle travel | 5.5″ |
Spindle feed range | .0015/.003/.006 IPR |
Head movement side to side | +/-90º |
Head movement front to back | +/-45º |
Table size (WxLxH) | 11″ x 52″ |
Table feed (longitudinal) | 32″ |
Table feed (cross) | 14″ |
Maximum work piece weight | 1025 lbs. |
Rotation of over arm | 360º |
Over arm adjustment | 24″ |
Spindle nose to table | 3″ – 20″ |
Weight | 3740 lbs. |
